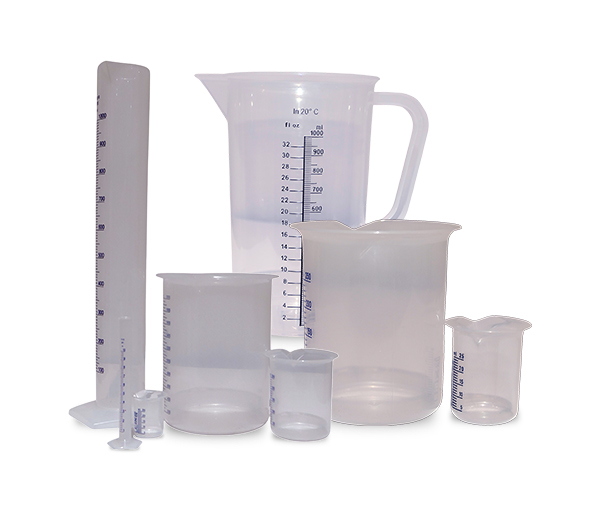

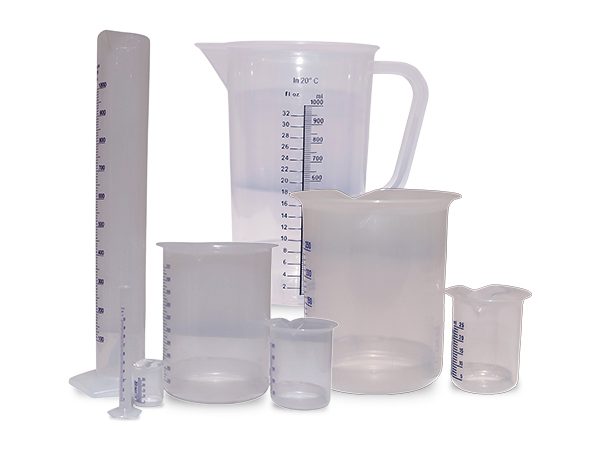

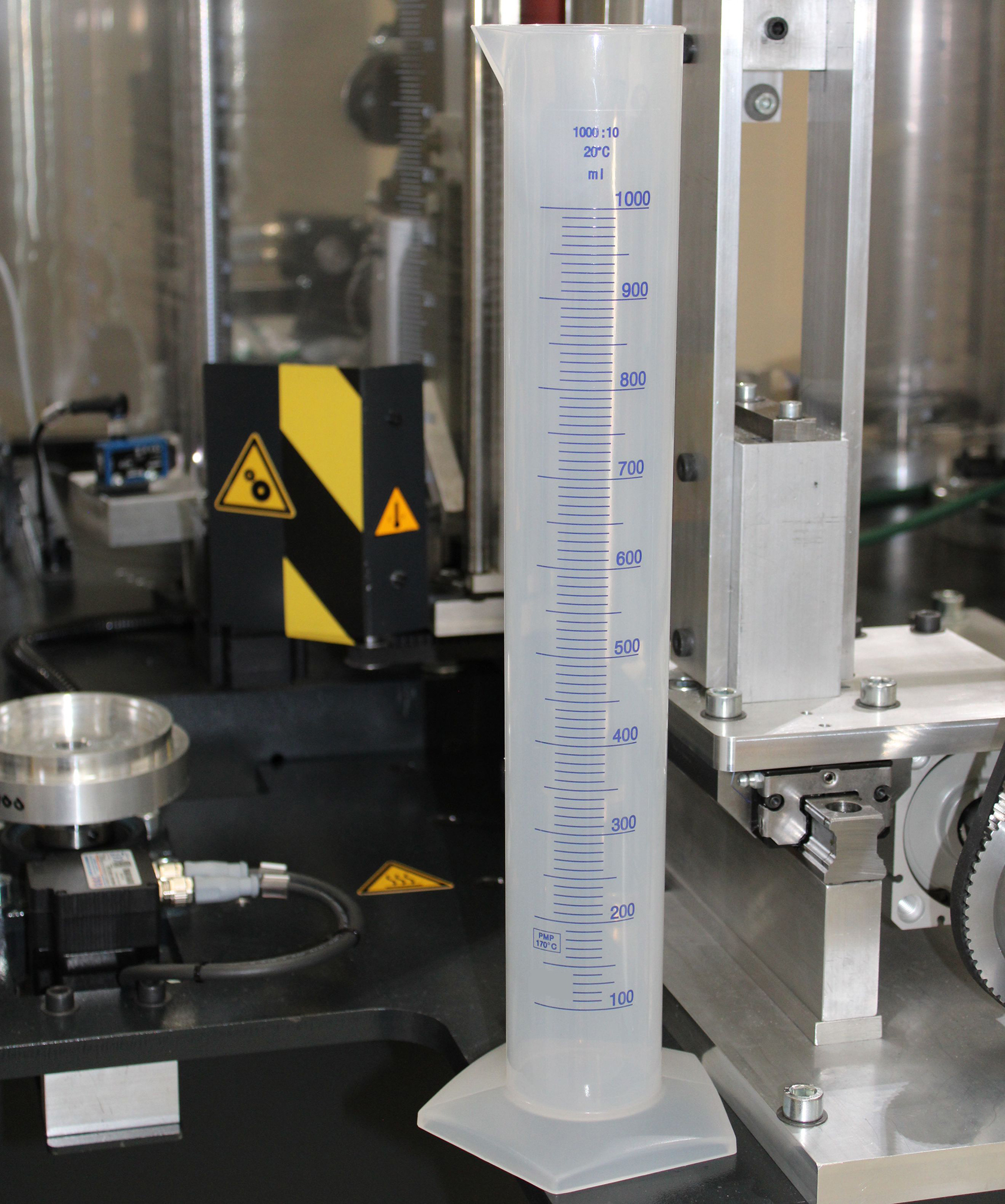

Applicator machine for printing, using the HEAT TRANSFER process, pre-printed digital graduations with Toner on plastic laboratory containers such as small and large graduated cylinders, beakers and truncated cones such as carafes, even with handles.
Download the technical sheet
Graduations and LOGOS can also be printed on embossed plastic and on multiple sections of the container itself.
The digital images, pre-printed using LASER printers, are applied by thermal transfer directly onto the plastic laboratory containers.

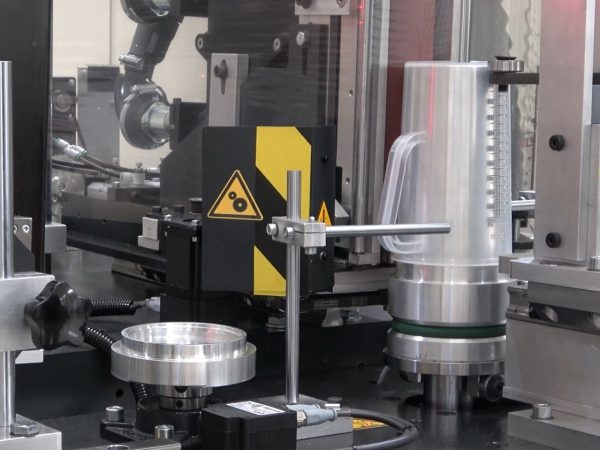

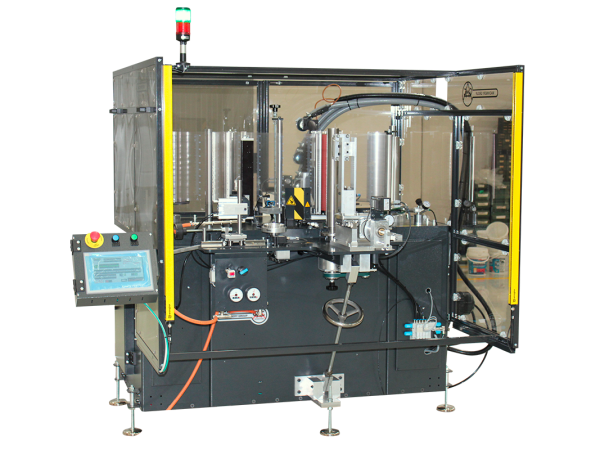

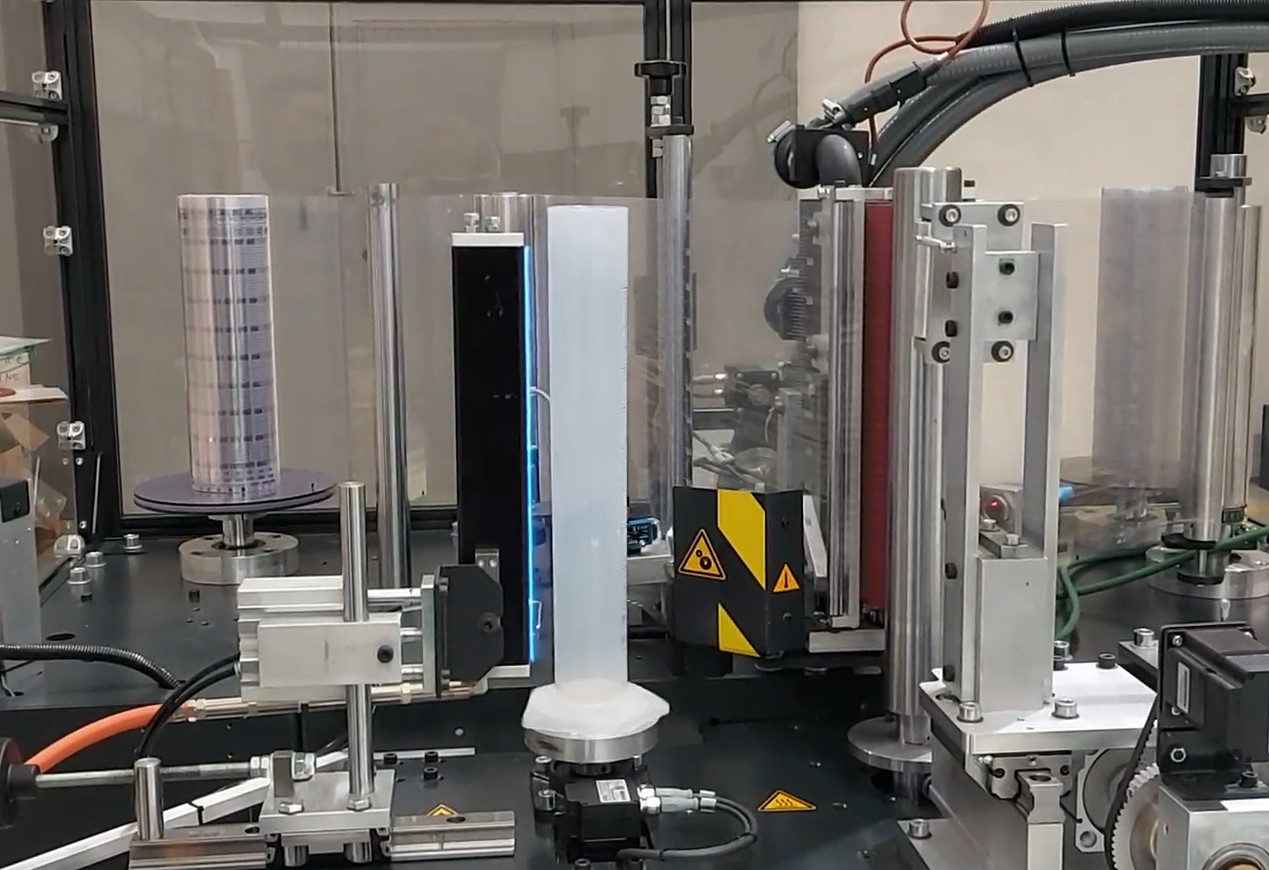

The APPLITRON 654BKC HEAT transfer labeller for digital images has an automatic printing cycle and manual loading/unloading of the piece.
The machine is equipped with hardware and software for managing production within factories with INDUSTRY 4.0 characteristics. The machine can exchange data with the production management system via OPC UA-SIEMENS protocolField of use: laboratory equipment used in chemistry to measure the volume of liquids and/or to measure solid materials such as sand and flour.

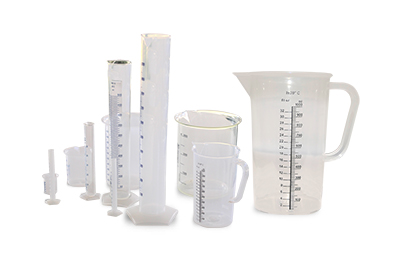

Beakers
Volume from 25mlt to 5lt
Min diam ext=34mm Max diam. ext.=190mm
Min height=49mm Max height=228mm

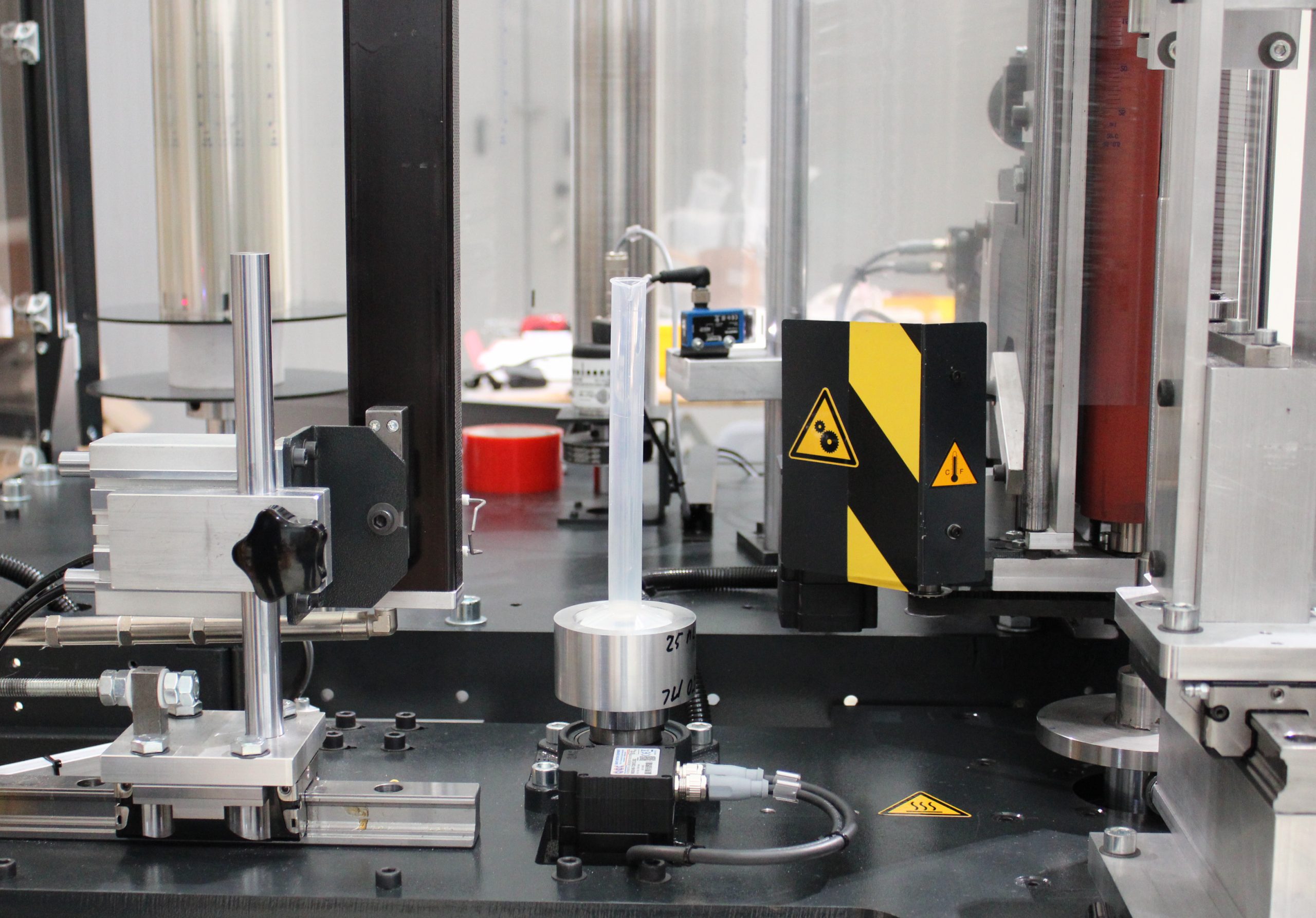

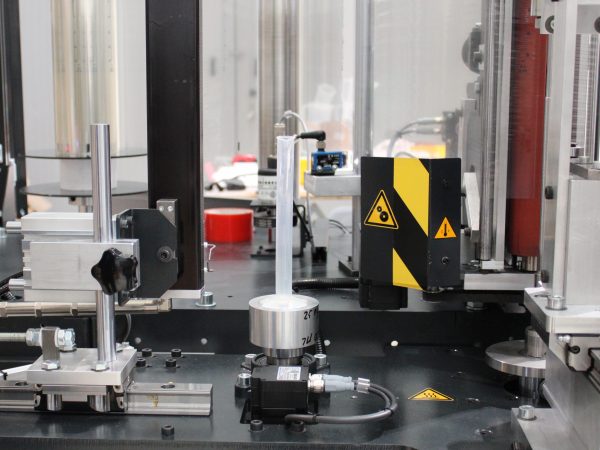

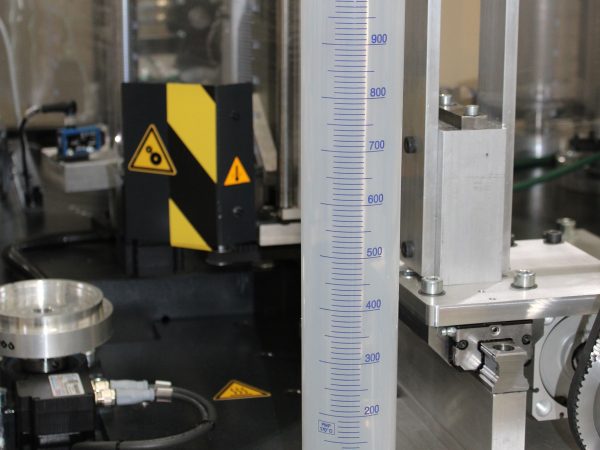

Graduated cylinders
Volume from 10mlt to 1000mlt
Min diam ext=13.5mm Max diam. ext.=66mm
Min height=139mm Max height=439mm

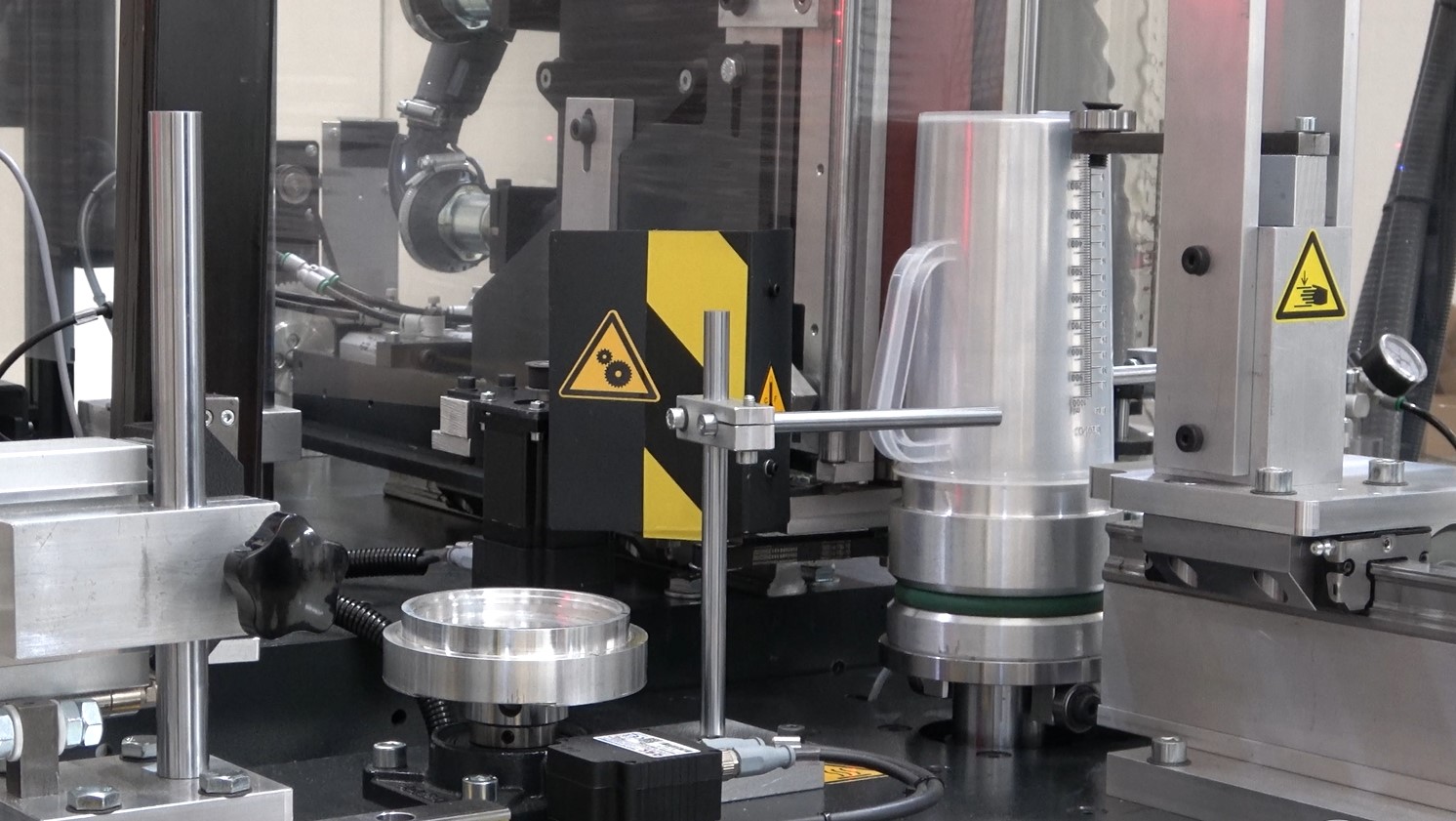

Jugs with handle
Up to 5L, Max diam=206mm
Max height= 253mm, in PP
Tolerance on any measurement ±0.5mm
