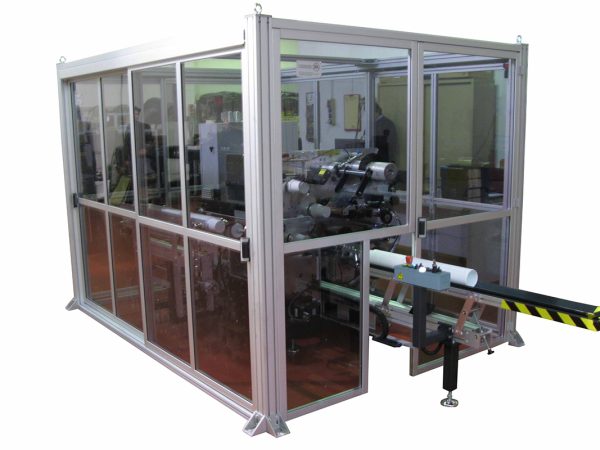

The APPLITRON 800-JAR applicator is an automatic machine for digital printing by thermal transfer, HEAT TRANSFER, of digital images produced with DIGITRON laser printers on truncated-conical containers with a circular base in small rigid plastic material such as jars. It is characterized by high performance, up to 75 cycles/minute, extreme ease of use, simplicity in format change, quality of decoration.
APPLITRON 800 can label/decorate plastic packaging made of PP (polypropylene) with or without floating or banded plastic or metal handle used in the following sectors: food industry, chemical industry, paint and varnish sector.

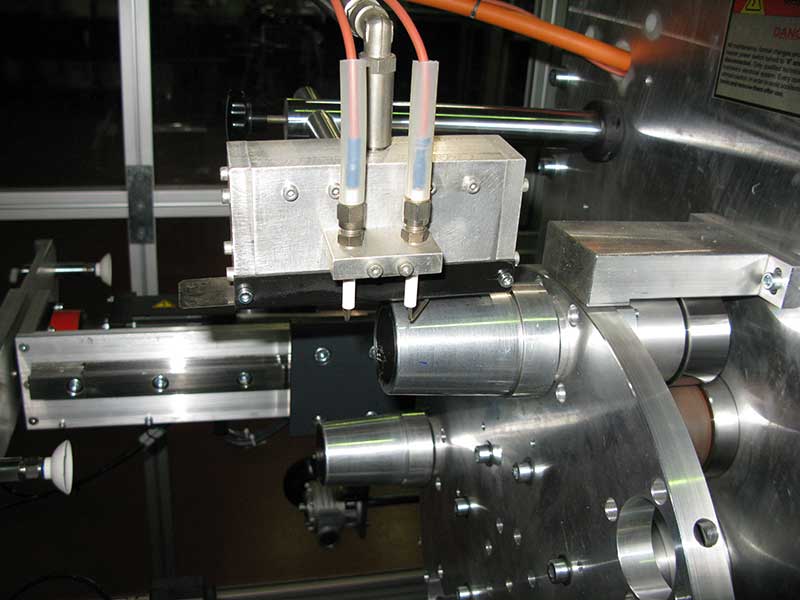

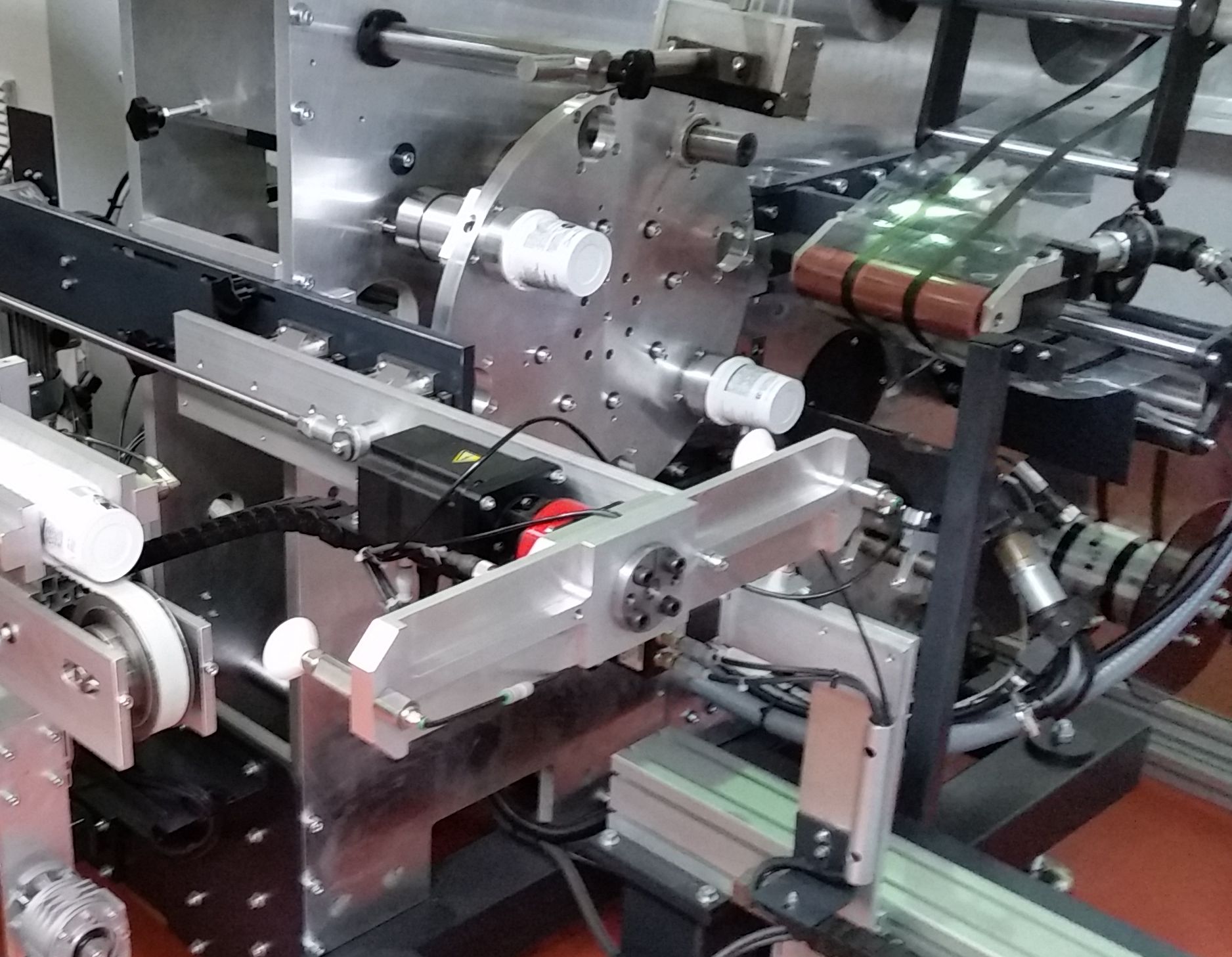

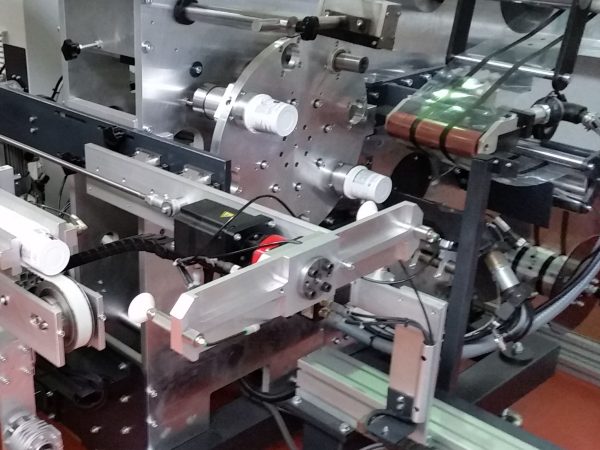

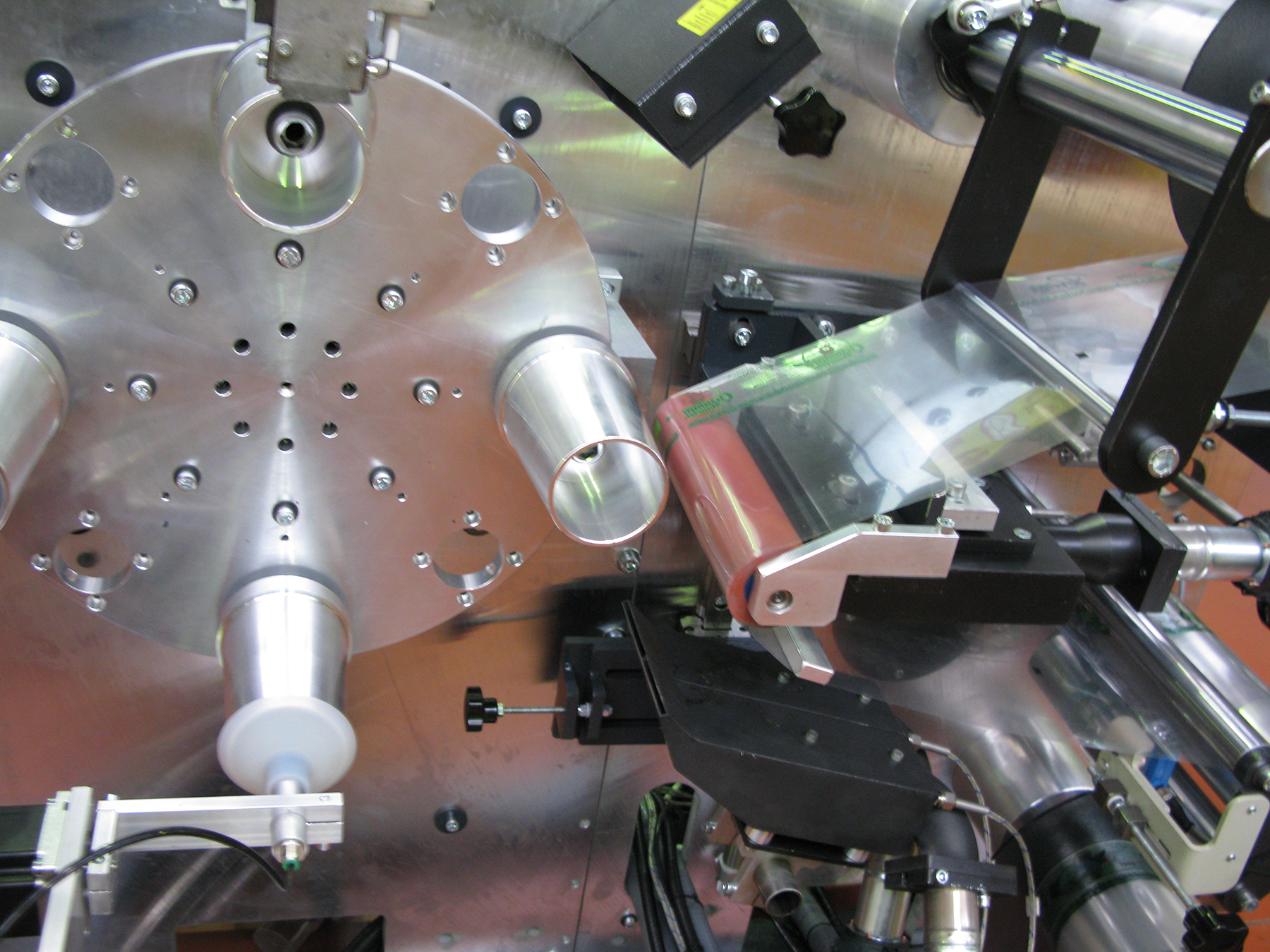

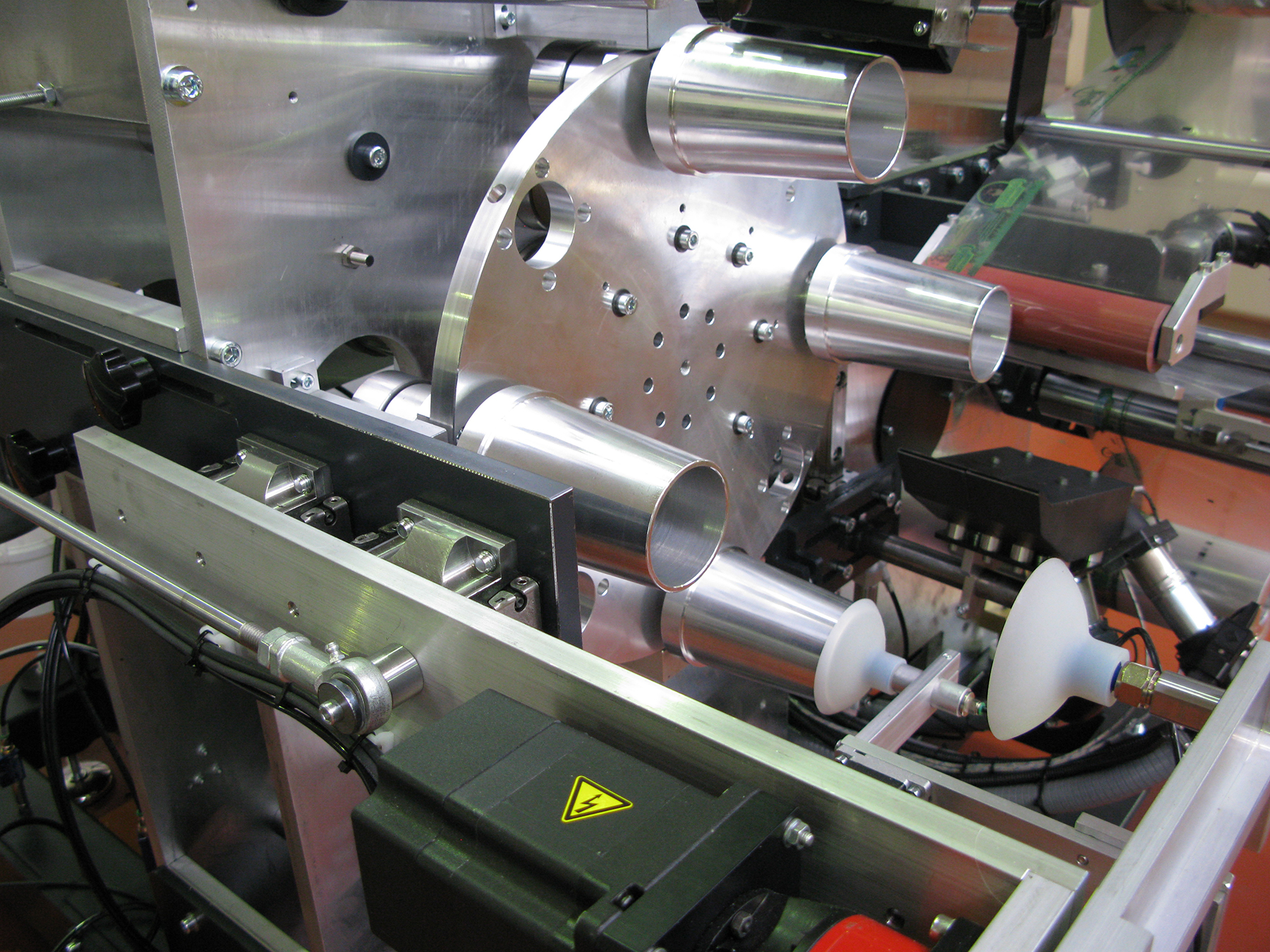

The moving parts are driven by servo-controlled electric motors, electronically controlled. The print head has 4 quick-fit spindles. The format change requires the replacement of the piece-holding spindles in addition to a few simple numerical adjustments, the estimated time of a trained operator is 15 minutes.
The APPLITRON 800 applicator works stand alone with respect to the DIGITRON digital printer, capable of printing in four-color process (C-M-Y-K) up to 16 million colors at high resolution. Equipped with accumulation plans for ordered stacks both at the input and output, it allows considerable working autonomy.
Minimum container diameter on edge
70 mm
Maximum diameter of container on edge
150 mm
Minimum height of container
70 mm
Maximum height of container
150 mm
Taper
2 ° – 13 °
Maximum production speed up to
75 pz / min

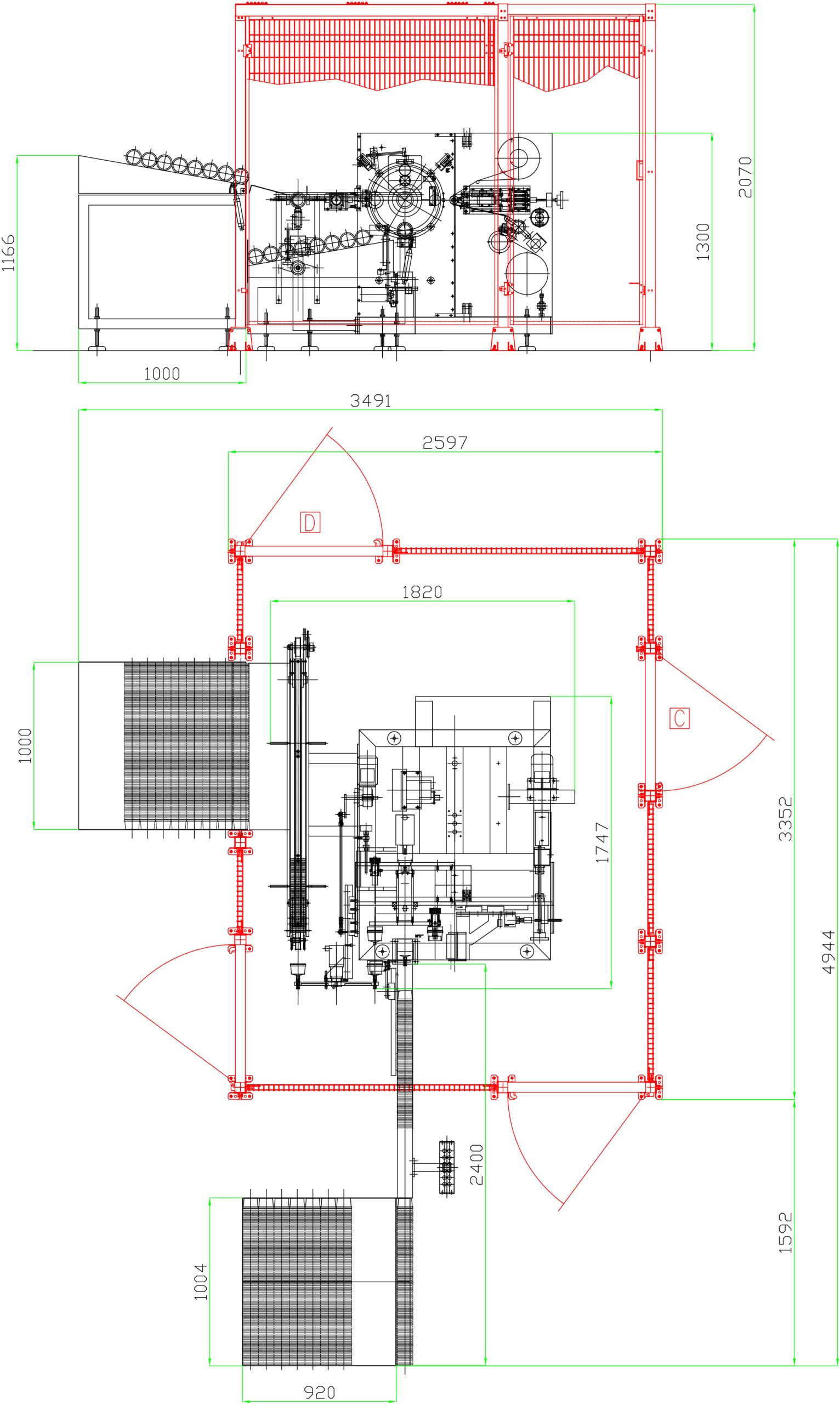

Technical design
Applications

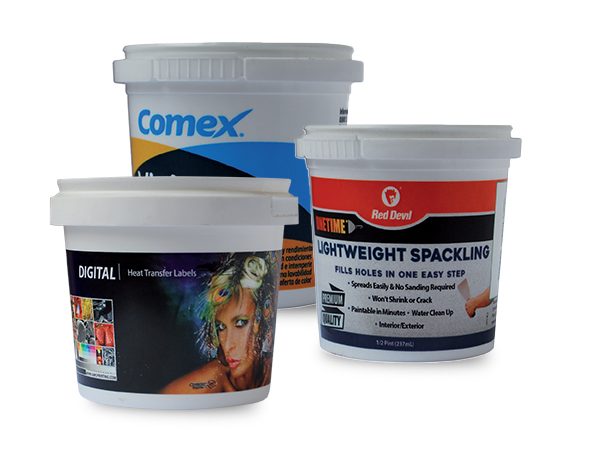

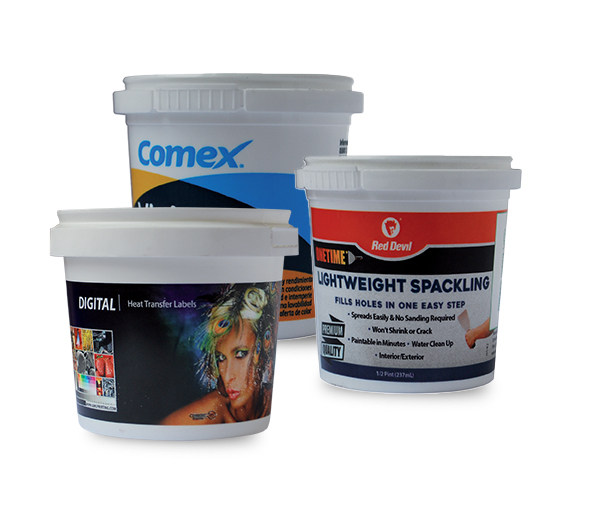

The machine Automatic applicator APPLITRON 800-JARS of GMC Printing can be used in the decoration of Jar-Pots, Plastic pails and buckets or products that can be decorated with geometry Truncated conical base containers. The material of the product can be HDPE, LDPE, Metal, PE, PP. To receive more details, contact us by filling out the form you find here.
