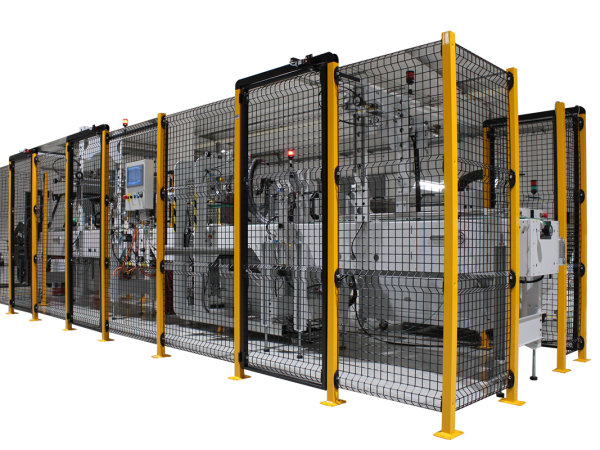

The APPLITRON 700 applicator is the automatic machine for digital printing on pails that can be defined as "universal" as it can decorate, by means of thermal transfer, HEAT TRANSFER, any shape of packaging currently available on the market: cylindrical, truncated cone with a circular base, square, elliptical, without any piece holder to support the packaging for a wide range of plastic materials such as PP (polypropylene), HDPE (high density polyester), ... with or without plastic handle such as a band, floating or metal with or without handle and metal containers with a white non-corrugated external surface.
Given its prerogatives, it is the most widespread of our digital portfolio for the versatility and efficiency that characterize it. This applicator, a HEAT transfer labelling machine for digital images, can decorate the packaging used in the food, chemical, pharmaceutical, paint and varnish industries.
APPLITRON 700 can work stand alone with respect to DIGITRON digital printers or IN LINE with them maximizing the potential of the system: direct printing on the container up to 16 million four-color colors, line images, spot colors, photographic images and micro fonts. The automatic digital transfer printing system requires a container unstacking system at the entrance which can be a vertical stack system (DAN 1300) or horizontal stack system (DAN 1000), a re-stacker at the exit with vertical stacks RAN1300 or horizontal stacks RAN1000 and can be equipped with a stack magazine for subsequent palletization or filling.
Thanks to the new transfer unit, designed and produced by GMC, with reduced energy consumption, the reduced thickness transfer film and the low melting temperature toner, high-gloss prints can be obtained without having to lacquer them. Image quality and high resolution are the prerogative of DIGITRON, digital printers, masters of the process. A matt finish is also possible, to satisfy any graphic need. The transfer decoration with GMC digital printing free from lacquer and solvents can be defined as a 100% green decoration.
Transfer speed
Adjustable from 3 images/minute to 14 images/minute
Minimum container diameter
100 mm
Maximum container diameter
348 mm
Minimum container height
100 mm
Maximum container height
350 mm
Conicity
min 2° max 4°
Containers
oval or square base
Bending radius
min 20 mm
L min - L max
210 mm – 350 mm
H min - H max
130 mm – 330 mm

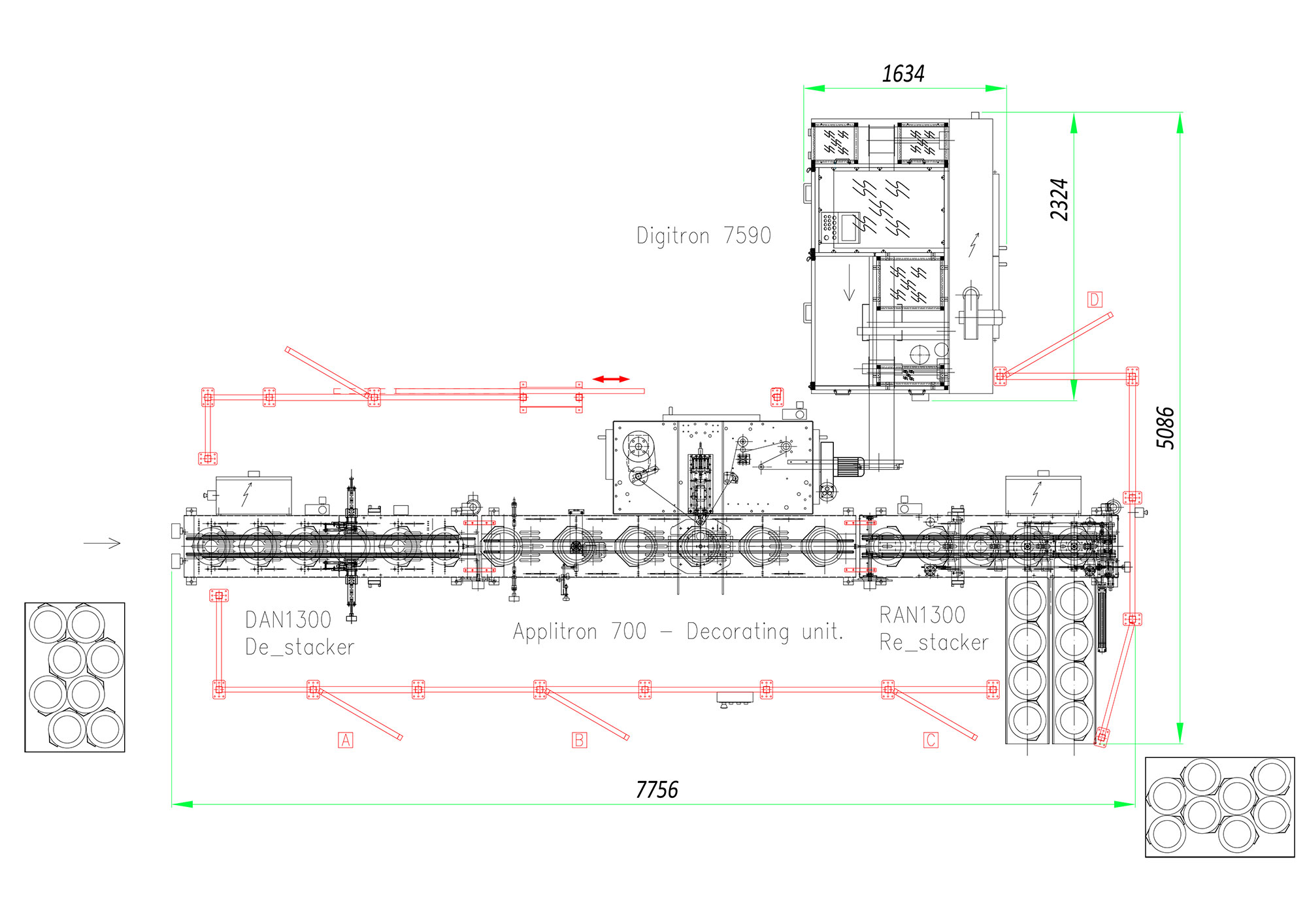

Technical design
Applications

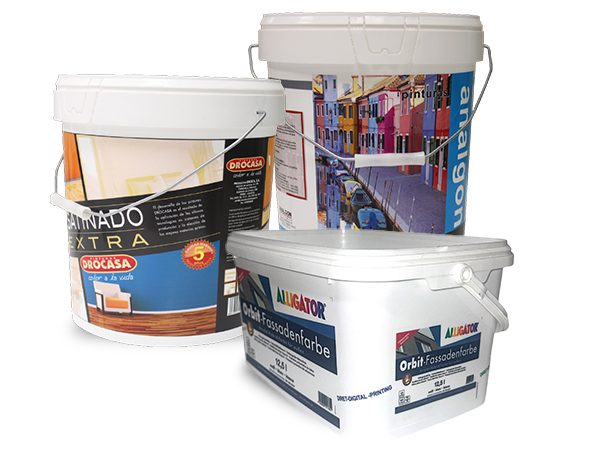

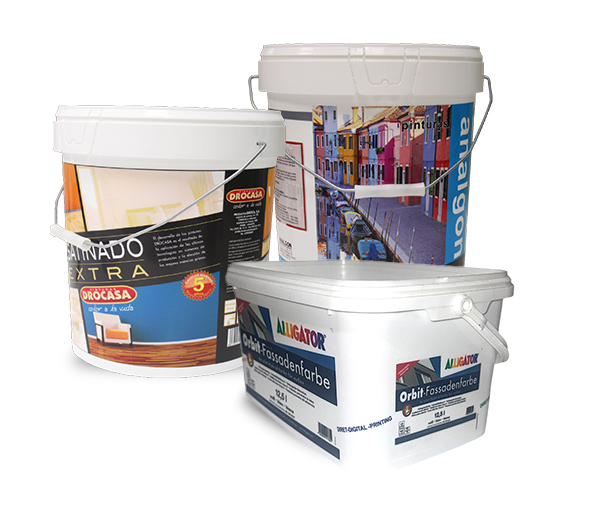

The machine Automatic applicator APPLITRON 700 of GMC Printing can be used in the decoration of Jar-Pots, Metal cans metal pails and buckets, Plastic pails and buckets, Buckets for paints and varnishes or products that can be decorated with geometry Cylindrical shape, Truncated elliptical base containers, Truncated conical base containers, Truncated square base containers. The material of the product can be HDPE, LDPE, Metal, PE, PP. with range 1 - 20 LT. To receive more details, contact us by filling out the form you find here.
